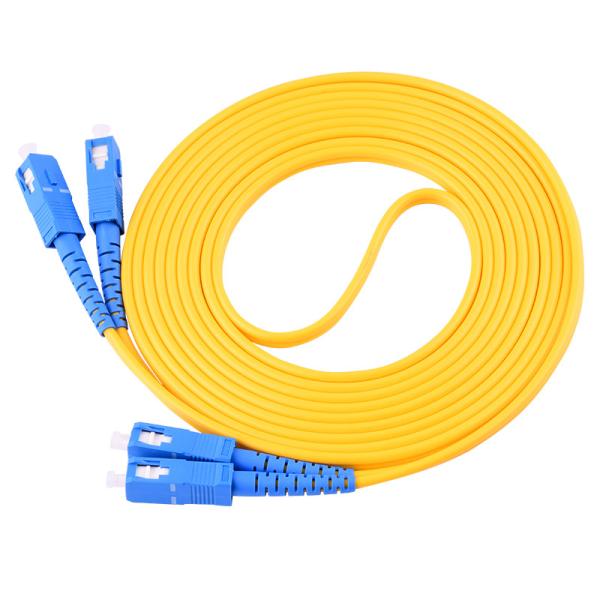

    Patch cord Cable SC To SC Connection Fiber-optic Parts with Customized Connector

    Ask Lasest Price
    Brand Name : Hicorpwell
    Model Number : HCW-SC
    Certification : CE & Rohs
    Delivery Time : 12
    Payment Terms : TT/Westunion
    Supply Ability : 5000 per Month
    • Product Details
    • Company Profile

    Patch cord Cable SC To SC Connection Fiber-optic Parts with Customized Connector

    A patch cable is a general term for cabling that connects two electronic devices to each other, typically in a network.

    These devices might include computers and other hardware. Patch cables are also used to carry telephone, audio, and video signals between devices in non-networked applications; these might include equipment such as headphones and microphones.

    Patch cables are also called patch leads. The term patch cord is sometimes used as well, but it's often associated more with non-network types of cables such as those for wiring stereo components.
    Patch cables are different from other types in that they're made to be more flexible than standard stiff, bulky copper cables.
    Patch cables always have connectors at both ends.

    Product Name
    Fiber optic patch cable
    Connectors
    LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, MU/APC
    Fiber
    Single mode/Multi-mode
    50/125, 62.5/125 (Multi-mode) OM2&OM1
    50/125, 10G (Multi-mode) OM3
    Cable
    Simplex, Duplex
    Φ3.0mm, Φ2.0mm, Φ0.9mm
    PVC or LSZH
    Polishing Manner
    UPC,SPC,APC (8°& 6°)
    Insertion Loss
    ≤ 0.1dB (For Single mode Master)
    ≤ 0.30dB (For Single mode Standard)
    ≤ 0.30dB (For Multi-mode)
    Tested by JDS RM 3750
    Return Loss
    (Single mode)
    UPC ≥ 50dB
    SPC ≥ 55dB
    APC ≥ 60dB (typ.65dB)
    Tested by JDS RM3750
    Repeatability
    ±0.1dB
    Operating temperature
    -400C to 850C
    Geometry Requirement
    ( Single mode)
    Ferrule Endface Radius
    7mm ≤ R ≤ 12mm (For APC)
    10mm ≤ R ≤ 25mm (For Standard)
    Apex Offset ≤ 30 μm (For Master)
    Apex Offset ≤ 50 μm (For Standard)
    Undercut -50nm ≤ U ≤ 50nm
    Tested by DORC ZX-1
    .
