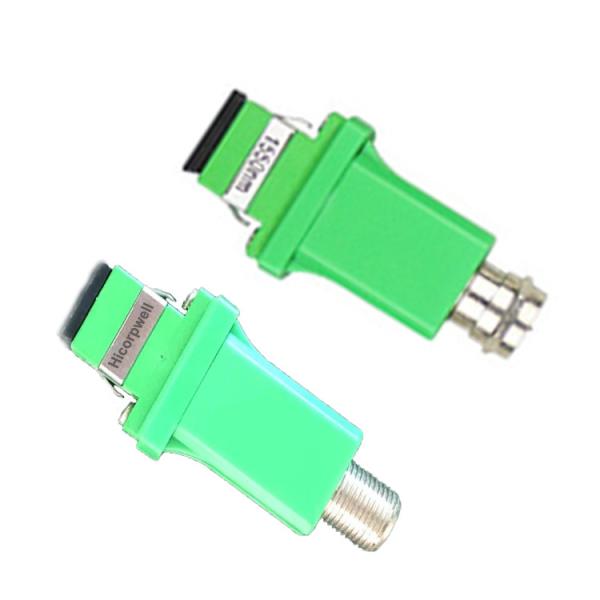

Female Connector with 1550nm Filter SC / APC To RF CATV Fiber Optic
Receiver FTTH Passive Optical Node
SC/APC to RF CATV converter for digital television, fiber to the
home. This machine adopts the high
sensitivity optical receiving tube, without power supply, no power
consumption.
When the input optical power output level Pin=-1dBm, Vo=6 8dB V,
can be economically
and flexibly apply the integration of three networks, fiber to the
home network application.
PRODUCT FEATURE:
1. No Power required
2. Work bandwidth 45~1050MHz
3. Output Level=68dBμV (Pin=-1dBm)
APPLICATION:
1. CATV FTTH
2. Integration of three networks
3. FTTH PON
4. Main Performance Parameters
Product Overview
Hicorpwell passive optical receiver is for low-cost FTTH network.
It has photodiodes with high responsivity, patented assembly, high
reliability, no power supply andmaintenance-free.
The model with optical filter and WDM can build all-optical
networks
based on WDM technology.
1550nm is applied for CATV RF transmission and 1310/1490nm is for
G/EPON.
Performance Characteristics
Suitable for low-cost FTTH, WDM optical network.
No power supply, plug and play, maintenance-free, MTBF
is up to 10W hours.
Photodiodes with high responsivity to provide high-quality signal
output.
High linearity and flatness in 47-1218MHz.
Patented packaging technology to minimize the dimension.
Light and durable PVC housing.
| Wavelength | 1100~1600nm&1550nm |
| Input optical power | 0dBm~-7dBm(Analogy Signal)&0dBm~-10dBm(Digital Signal) |
| Return loss | >45dB |
| Optical connector | FC/APC&SC/APC | FC/PC&SC/PC |
| Bandwidth | 40~862MHz |
| Flatness | ±0.75dB@40~862MHz&1006MHz |
| RF output loss | ≥16dB@40~550MHz ≥ 14dB@550~862&1006MHz |
| Output port level | >68dBuV(0dBmtest) |
| CNR(note1) | ≥51dB |
| CTB(note1) | ≥65dB |
| CSO(note1) | ≥62dB |
| Working temperature | -25℃~+45℃ |
| Output port | 1 |
| RF output impedance | 75 Ω |
| Size | 65*22*10mm |
1. Passvie FTTH Mini DBC Optical Receiver Node is a specialty
product which is specially designed
for FTTH-Fiber to the home network structure.
Compact and reasonable internal circuit structure, the housing
adopt dedicated aluminum alloy,
wiredrawing oxidation treatment the surface.
2. The performance indicators of Passvie FTTH Mini DBC Optical Receiver Node without Power
Supply are good and the appearance is high-grade and beautiful.
This product has been popular in the international market, was
welcomed by foreign customers.
Packaging & Delivery
Single package size: 33X44X30 cm
Single gross weight: 0.5 kg
Package Type:
1000 pcs/carton for Passive FTTH Optical Receiver Node
Lead Time :
| Quantity(Piece) | 1 - 10000 | >10000 |
| Est. Time(day) | 20 | To be negotiated |
