Supporting Seamless Steel Tube Series Fiber Bragg Grating Sensors
With only one end SMF Fc/APc

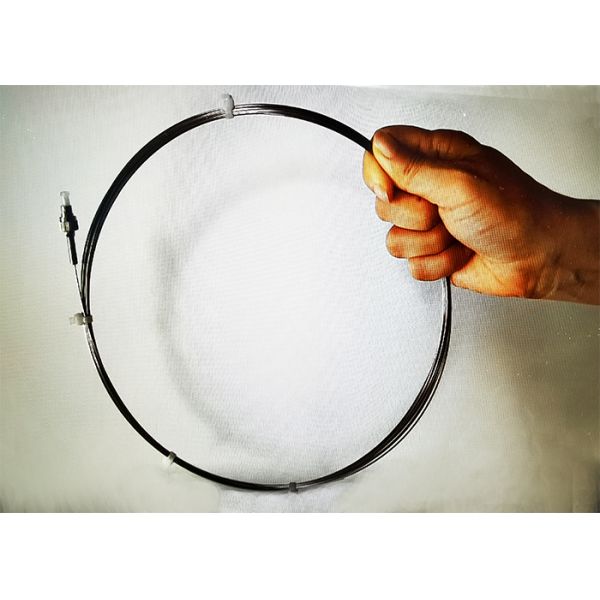

Hicorpwell seamless steel tube FBG temperature sensor is packaged
with fiber optic connectors,
stainless steel seamless tubes and single-point/string fiber Bragg
grating (FBG).
| Sensor armor type | Hicorpwell Seamless Steel Tube Fiber cable/Glass Grating Sensor
Standard Package (Type 01) |
| Sensor armor diameter | 0.9mm |
| Seamless steel tube material for sensors | 304 stainless steel |
| Seamless steel pipe wall thickness for sensors | 0.18mm |
| Seamless steel tube weight for sensors | About 3.2 g/m(Without connector) |
| Sensor tensile strength | >200N(Without connector) |
| Sensor anti-side pressure | >9000N(Without connector) |
| Sensor compressive strength | >180Mp(Without connector) |
| Sensor tail package | Adhesive seal |
| ※Armored and rear end options | Sensor diameter (0.9 mm / 2.0 mm / 3.0 mm), unconventional
corrosion-resistant solution |
| Multi-point fiber grating string (array) |
| Fiber type | SMF-28E |
| Writing method | Mask |
| Center wavelength | 1525nm to 1565nm or According to customer needs |
| Reflectivity | 10% to 99% |
| Temperature range | -40 to 150 degrees Celsius (this product can be used repeatedly at
150 degrees, but it can not be placed at this temperature for a
long time. It can be used continuously for a long time in default
temperature) |
It has high sensitivity, fast heat transfer, good accuracy, small
volume, lightweight, high tensile strength,
high-pressure resistance, high-temperature resistance, waterproof
and moisture-proof, no combustibles,
corrosion resistance, etc.
Using the temperature measurement characteristics of the Bragg
grating (FBG), the sensor can be probed,
stuck, surfaced, glued or embedded in the structure to be tested
for temperature detection and monitoring.
It can be widely used in industrial production, power, railway, military,
aerospace and other fields of single-point
or quasi-distributed temperature measurement.
| Connector type | FC,ST,SC,LC |
| End face type | APC | PC |
| Ferrule material | ceramics |
| Insertion loss | <0.2db | <0.2db |
| Return loss | >-60db | >-40db |
| Storage environment | -40℃to+85℃ |
| working environment | -40℃to+75℃ |
| ※Sensor connector options | FC/APC, FC/PC optional high-temperature joints, high-temperature
joint materials can withstand 550 degrees high temperature
(depending on stock) |
